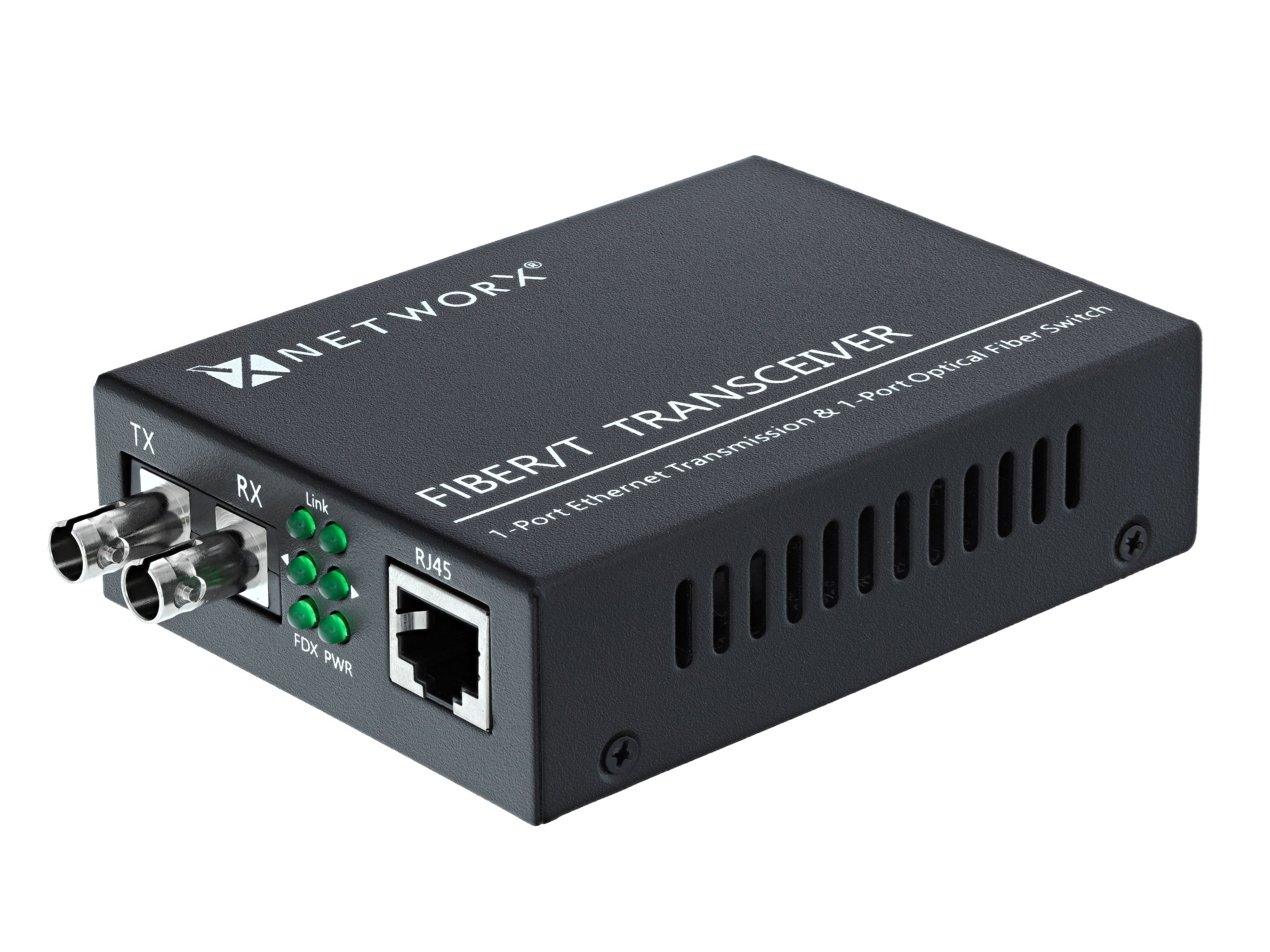

Gigabit Fiber Media Converter - UTP to 1000Base-SX - ST Multimode, 550m, 850nm
This Fiber Transceiver / Media Converter converts data signal between 10/100/1000Base-T and 1000Base-SX Gigabit Ethernet. Maximum transmission distance 550 meters over multimode fiber (50/125 micron, 220m over 62.5/125) @ 850nm. Duplex ST Connector.
The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-SX fast Ethernet. It supports 10/100/1000Base-T and 1000Base-SX applications. The data signal converted by such high performance media converter can be transmitted up to 80Km maximum by fiber-optical cable.
The Converter is equipped with single fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jack and one external pwer supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converters can be inserted into a rack-mount chassis (up to 16 units), and allowing all the converters to be powered by a single internal power supply.
- Data Rate (Mbps) - 10/100/1000 with Auto-Negotiation
- Mode - UTP Half or Full Duplex
- Optical wavelength - 850nm
- Fiber Type (micron) - Multi Mode 50/125, 62.5/125
- Connector Type - One UTP RJ45, Two ST Fiber
- Max Distance - 550 meters over 50/125, 220m over 62.5/125
- Power Supply - External AC-DC Power Adapter, US Standard
- Size - 95mm x 71mm x 26mm
- Optical Ouput Power - -10 to -4 dBm
- Receiving Sensitivity - -17 dBm
- Saturability - ≥ -3 dBm
