6U Wall Mount Cabinet - 101 Series, 18 Inches Deep, Flat Packed

Get organized with the 6U 101 Series of Wall Mount Cabinets from Networx®.
Manufacturer: Networx®
Availability: In stock
SKU: WMC-S101-6U
GTIN: 00845425023544
$135.99

Get organized with the 6U 101 Series of Wall Mount Cabinets from Networx®. This cabinet comes equipped with some of the most requested features. Starting with the basics, this Wall Mount Cabinet is constructed with high quality SPCC Cold-Rolled Steel Panels. All Networx® Wall Mount Cabinets come with removable side panels, which include vents to keep equipment cool, to allow for quick access to sensitive networking equipment. All front panels swing out for easy access to loaded network equipment and include a window of 5mm tempered glass. Included with this high quality Wall Mount Cabinet is a single 120mm fan for ideal air movement to keep network equipment cool and running at peak performance. Adjustable rails allow for full customization to allow a variety of networking equipment to fit securely. The rails are punched to allow for the installation of M6 Cage Nuts. Both Side Panels and Front Door are lockable with the included set of keys. Top/Bottom/Rear knockouts for cable entry and exit. All racks are designed to house 19" rack mountable equipment.

  • 12 M6 Cage Nuts
  • 4 Lag Bolts for Wall Mounting
  • 6U Rack Mount Units

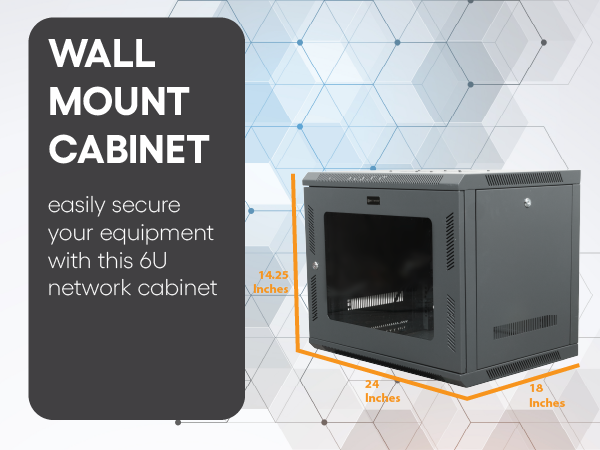

  • External Dimensions: Height 13" x Width 24" x Depth 18"
  • Designed for equipment with a 19” mounting profile
  • Vented Top/Sides/Front Panels for adequate airflow
  • Reversible front door with tempered glass window
  • Removable side panels for easy access to equipment
  • Front and Side Panels are lockable with included set of keys
  • Top/Bottom/Real Knockouts for easy cable entry and exit
  • Supports up to 130lbs when secured properly
  • Flat Packed - Assembly Required
Products specifications
Manufacturer Networx®
Color Black
RMU 6U
Cage Nut Rails Front & Rear
Internal Mounting Format 19"
Delivery Style Flat Packed
Preinstalled 80CFM 110V Fans 1
Rack Height (Assembled) 13.2 Inch
Rack Size Depth (Internal) 18" (14")
Rack Size Width (Internal) 24" (19")
Load Capacity 130 lbs
Locking Side Panels Yes
Key Lock Set (2 Keys per Set) 1 Set
Structure & Fabrication SPCC Cold-Rolled Steel Sheets
Reversible Front Locking Door Tempered Glass
Vented Side Panels Removable
Hinged Swing Out Design No
Reinforced Door Frame Yes
SKU WMC-S101-6U
GTIN 00845425023544
Weight (Lbs) 33.60
