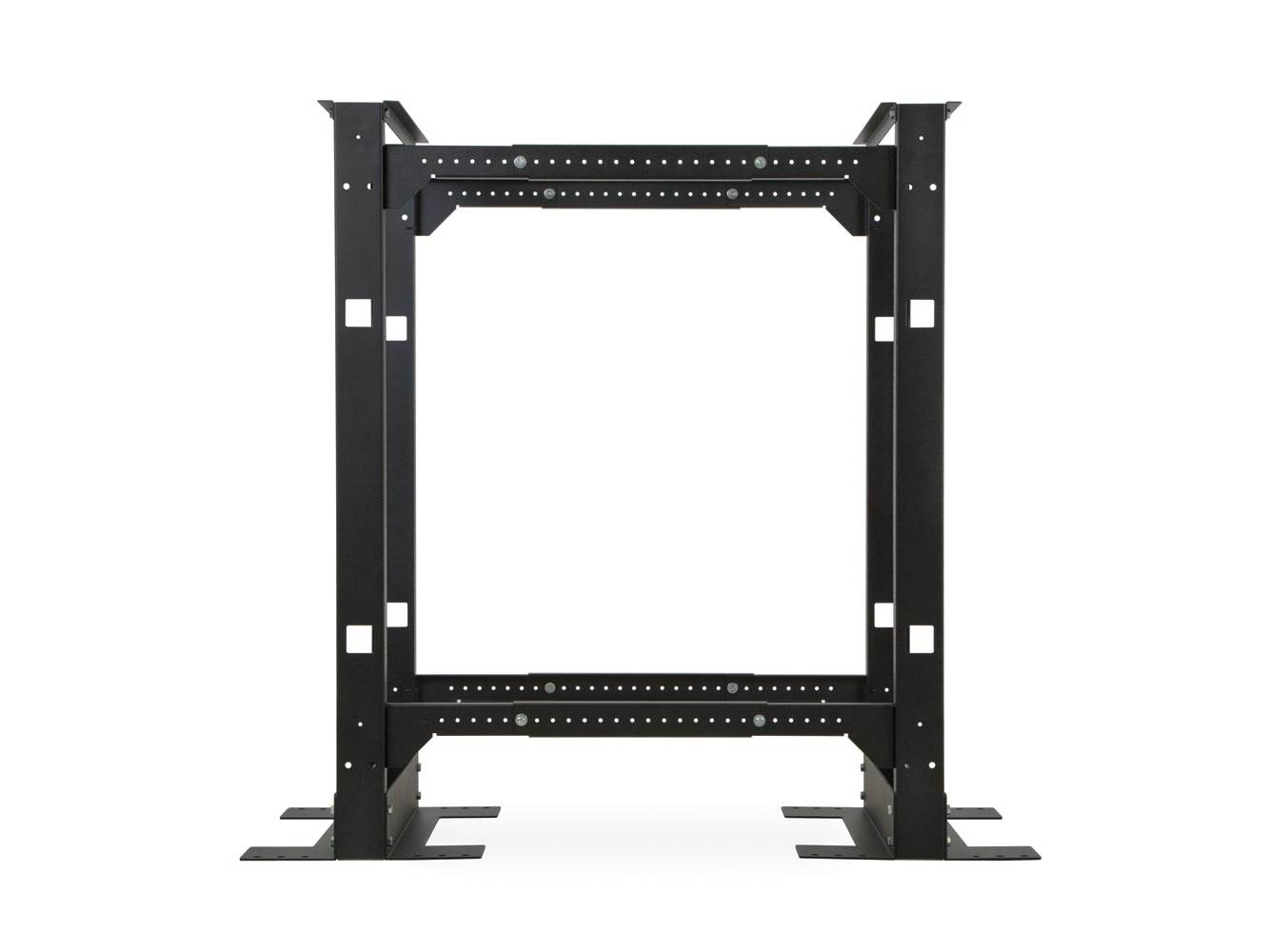

For an adjustable 4-point solution ideal for data centers and wiringclosets, go with the 4-Post Adjustable Rack. Its usable depth can adjust from26” to 38” so you’re not left with a fixed depth. To adjust the depth, simplymove each bracket to your desired depth and secure the hardware in place. Ifyou need a larger solution, gang multiple 4-Post Adjustable Racks together byusing the ganging holes found on each side. You can even gang both the 24U and45U size racks together because the holes align. For installations that requireconnections be made above the rack, such as trunk cabling or ladder racks,simply go through the completely open frame at the top. The 4-Post AdjustableRack features eight ¼-20 x 0.5” grounding studs on the inside of the four railsthat allow you to ground your equipment directly to those studs. Also includedwith the rack are serrated tooth washers that, when tightened, dig in andremove paint from the rack, establishing electrical continuity throughout therack. With its strength, durability, and adjustability the 4-Post AdjustableRack is a sure fit for your next installation.
Adjustable Rack - The4-Post Adjustable Rack can adjust its usable depth from 26” to 38” so it can beused in multiple network installations.
Durability - The4-Post Adjustable Rack’s welded L bracket base and cold rolled steel designforms a sturdy, reliable rack. Floor mounting holes are available to secure therack to the floor for maximum durability. We always recommend installing yourheaviest equipment at the lowest points on the rack.
Gangable - Gangingholes on both sides of the rack make it easy to gang and secure multiple rackstogether. The sides also feature cable pass through holes to allow cabling topass from one rack to the next.
Electrical Grounding - Therack features eight ¼-20 x 0.5” grounding studs on the inside of the fourrails. These studs allow you to ground your equipment directly to the stud orwith the use of bus bars, not included. The rack also includes serrated toothwashers to allow the frame to be grounded during the assembly process.
Open Top Design - The4-Post Adjustable Rack’s completely open top allows for smaller trunk cabling,and makes the rack compatible with most ladder racks and accessories
- Adjustable usable depth from 26” to 38”
- 10-32 tapped rails
- Includes 50 10-32 rack screws
- Includes eight 1/4-20 grounding studs
- Ships knocked down in one box
- Gangable
- 1,600 lb. weight capacity
- 19” EIA compliant
- Made in the USA
- Limited Lifetime Warranty
