VGA Video Extender (over CAT5)

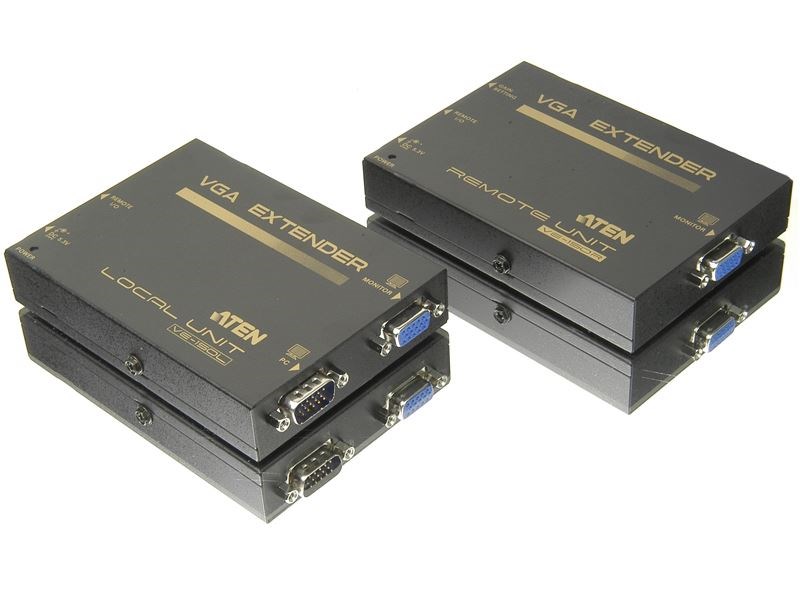

VE-150 video extender kit contains a local transmitting unit and a remote receiving unit which are connected by standard Category 5 UTP cables.
Manufacturer: ATEN Technology Inc.
SKU: VE150
$234.95
VE-150 video extender kit contains a local transmitting unit and a remote receiving unit which are connected by standard Category 5 UTP cables. The distance of both units can be extended up to 500 ft. (150m). It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

  • Uses Cat 5e cable to extend audio/video signal
  • Extends the transmission range an extra 150m
  • High-quality video - up to 1600 x 1200 @ 60Hz at 150 m
  • Audio and serial enabled
  • Two gain control modes for sharpest picture quality
  • Video gain and compensation adjustable via OSD
  • IR receiver for quick and easy video quality adjustment
  • IR remote control for screen on/off and video adjustment at remote site
  • Provides two RS-232 channels for selection
  • Follows VESA FDMI mount standard
  • Supports DDC for the local monitor
  • Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
  • For use in combination with VS1504/VS1508 Audio/ Video splitter
Products specifications
ManufacturerATEN Technology Inc.
Weight (Lbs)1.75
