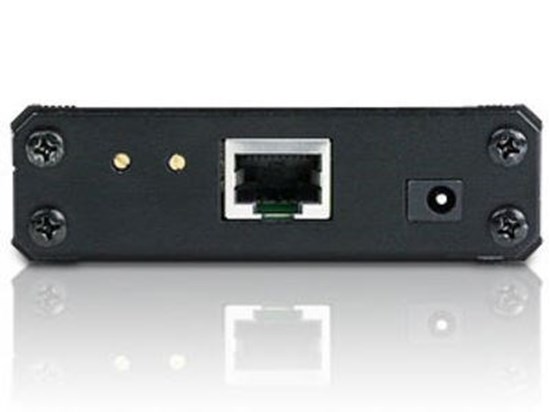

VGA Over Cat 5 Repeater

The VE550 VGA Over Cat 5 Repeater is a video signal extension device which is compatible with ATEN KVM Extenders, Video Extenders, and Cat 5 KVM Switches. The VE550 extends the video transmission range up to twice the original distance over Cat 5e cables. Moreover, using an additional repeater, VGA signals can be transmitted over even longer distances. Furthermore, in some long distance installations where video signals may degrade, the VE550 can be used in conjunction with the VE510 Video Synchronizer to compensate for video signal delay and video color bleeding.

• Uses Cat 5e cable to extend audio/video signal
• Extends the transmission range an extra 150m
• High-quality video - up to 1600 x 1200 @ 60Hz at 150 m
• Audio and serial enabled
• Two gain control modes for sharpest picture quality
• Video gain and compensation adjustable via OSD
• IR receiver for quick and easy video quality adjustment
• IR remote control for screen on/off and video adjustment at remote site
• Provides two RS-232 channels for selection
• Follows VESA FDMI mount standard
• Supports DDC for the local monitor
• Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
• For use in combination with VS1504/VS1508 Audio/ Video splitter
