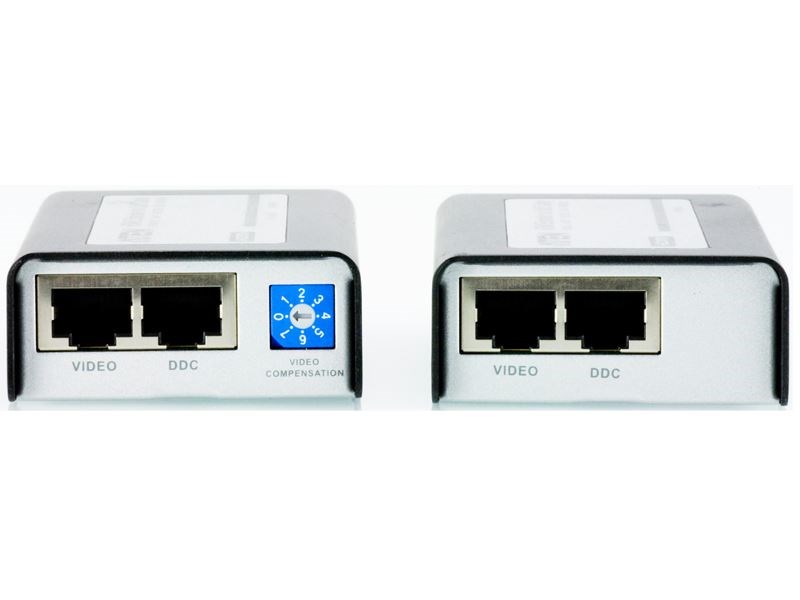

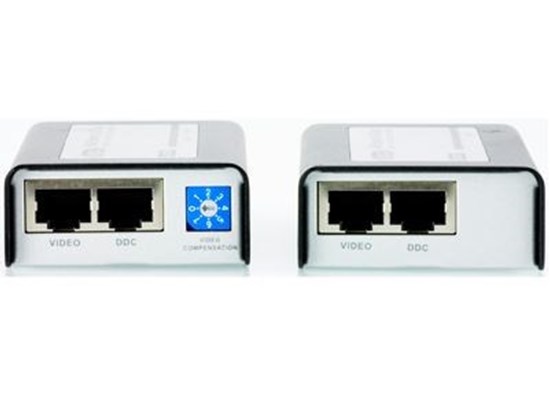

HDMI Video Extender (over CAT5)

The VE800 HDMI Extender uses two Cat5e or Cat6 cables to extend your HDMI display up to 195 ft away from your source. It is equipped with HDMI connectors and with an HDMI-to-DVI adapter, it will connect to DVI equipment providing greater flexibility and installation options when integrating several home theater components. The unit is simple to install, just connect two Cat5e or Cat6 cables between the local and remote units then connect your video source and monitor. Additionally the VE800 may be connected to a video switch or video splitter to further enhance the options of setting up your home theatre environment. The VE800 is fully HDMI compliant and supports HDTV resolutions: 480p, 720p, 1080i. 1080p, and computer resolutions up to 1920 x 1200.

• Uses Cat 5e cable to extend audio/video signal
• Extends the transmission range an extra 150m
• High-quality video - up to 1600 x 1200 @ 60Hz at 150 m
• Audio and serial enabled
• Two gain control modes for sharpest picture quality
• Video gain and compensation adjustable via OSD
• IR receiver for quick and easy video quality adjustment
• IR remote control for screen on/off and video adjustment at remote site
• Provides two RS-232 channels for selection
• Follows VESA FDMI mount standard
• Supports DDC for the local monitor
• Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
• For use in combination with VS1504/VS1508 Audio/ Video splitter
