HDMI Extender over single Cat 5 with Dual Display

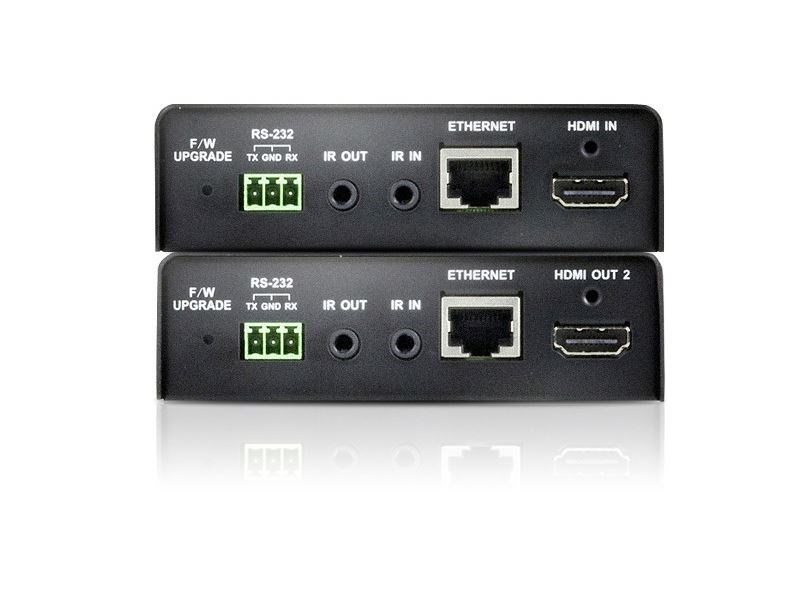

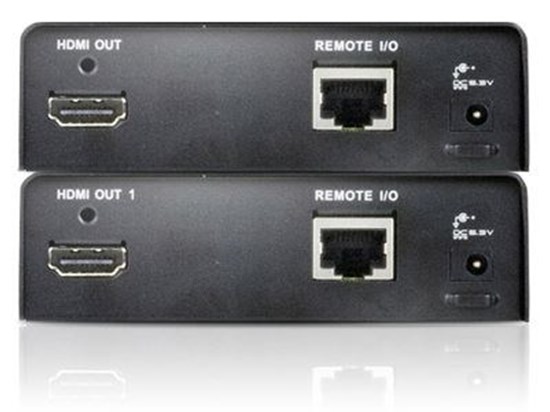

ATEN´s latest offering delivers high quality videos in dual displays over distance. With VE814 HDMI Extender, your HDMI displays can be located up to 100 meters away from the HDMI source device. This is made possible using only one Cat 5e/6 cable, which is cheap and easily available. In addition, your video can be streamed using up to three HDMI displays – dual displays connected to the receiving unit (VE814R) and another one to the transmitter unit (VE814T). The VE814 carries an Ethernet pass-through port for Internet connectivity, making it easy for go online when necessary. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible, ensuring superior video quality so that you get the most out of your HDMI displays.

• Uses Cat 5e cable to extend audio/video signal
• Extends the transmission range an extra 150m
• High-quality video - up to 1600 x 1200 @ 60Hz at 150 m
• Audio and serial enabled
• Two gain control modes for sharpest picture quality
• Video gain and compensation adjustable via OSD
• IR receiver for quick and easy video quality adjustment
• IR remote control for screen on/off and video adjustment at remote site
• Provides two RS-232 channels for selection
• Follows VESA FDMI mount standard
• Supports DDC for the local monitor
• Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors
• For use in combination with VS1504/VS1508 Audio/ Video splitter
