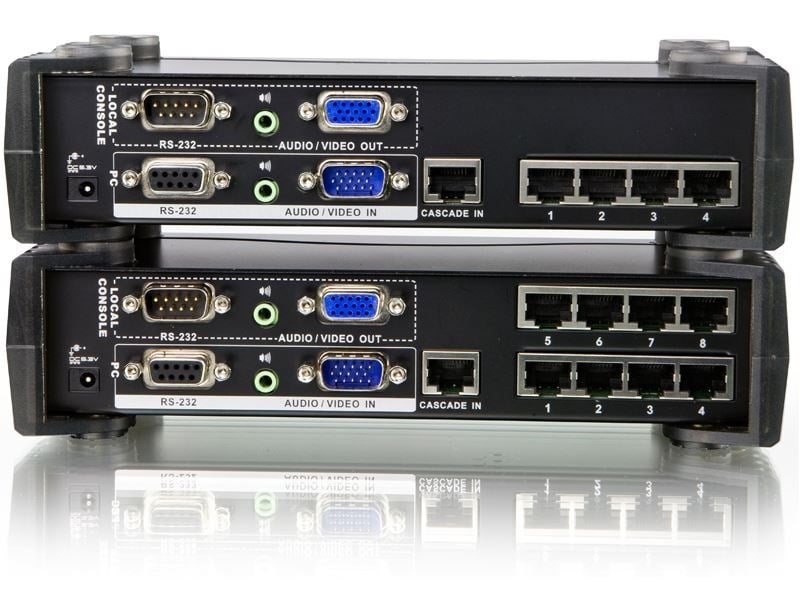

8 Port CAT5 Video Splitter/Extender with Audio

The VS1508 allows a single1600 x 1200 video source with audio to be distributed to as many as 16 monitors up to 490 feet away via Cat5e/Cat6 cable. The VS1508 may be cascaded to three levels of additional VS1508 and VB552s* providing Audio / visual data to potentially hundreds of displays. The VS1508 is ideal for applications requiring many widely spaced monitors displaying the same Audio / video information such as schedules, notifications, advertising, news, sporting events, and lectures. *The VS1508 must be used in conjunction with the VB552, one VB552 is included with each VS1508

• Distribute one Audio / Video input to 8 outputs via CAT5 cabling connected to VB552s
• Cascadable to three levels and provides hundreds of outputs when combined with additional ATEN VB552 repeaters
• High quality video and supports 1600 x 1200 @ 60Hz up to 490 ft between each VS / VB , VS / VS , or VB / VB node
• Two gain control modes for sharpest picture quality and manual or automatic
• Group screens off/on function allows blanking of selected monitors
• Provides two selectable RS-232 ports for touch screen inputs
• Bundled with one VB552 Audio / Video repeater
