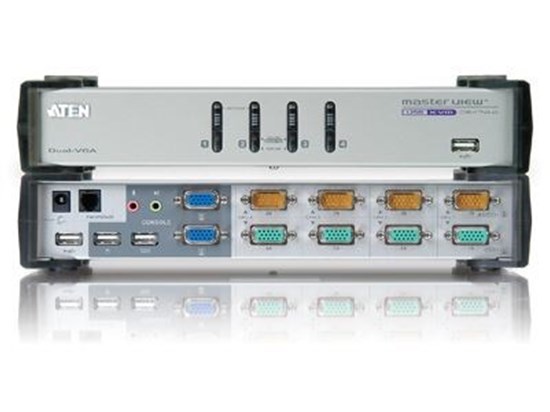

4 Port Dual-View KVM Switch with Audio and 2 Port USB Peripheral Sharing

The Dual-View CS-1744 USB KVM Switch brings dual head video functionality to ATEN's USB KVM switch technology. Now, four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the CS-1744 incorporates a two port USB hub that allows each of the computers to share any USB peripherals connected to the hub on a one computer at a time basis. Recognizing the importance of sound, the switches are also audio-enabled. A single microphone can provide audio input to each of the computers, and you can listen to the audio output of each computer on a single set of speakers (on a one-at-a-time basis).

• One console controls four computers
• Additional VGA display channel provided for dual display of each computer
• Additional two USB ports for USB device sharing between two connected computers
• Audio jacks provided for speaker and microphone sharing
• Independent switching of KVM, USB, and audio
• Easy to install - no software required - connecting cables is all it takes
• Easy to operate - computer selection via push button switches or hotkeys
• Auto Scan function to monitor computer operation
• Hotkey selection for OS and keyboard language
• LED display for easy status monitoring
• Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
• Hot pluggable -add or remove computers for easy maintenance
• Firmware upgradable
• Keyboard and mouse emulation for error free booting S
• upports Windows 98SE or higher, Mac OS 8.6 or higher, SUN Blade 2000/100, (Sun Solaris 8 or higher) Linux and Unix
• Supports multimedia USB keyboards Supports Mac & Sun keyboards
• Supports all mice with native driver installed
