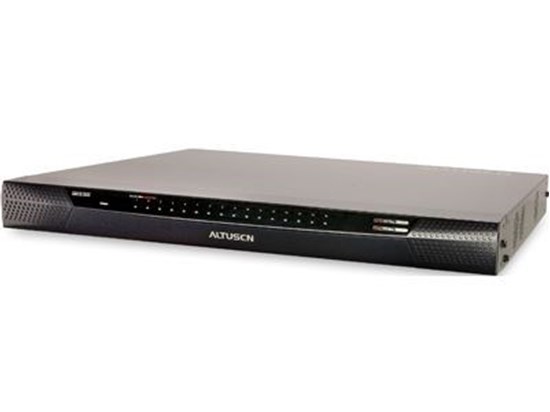

32 Port 5-User (1-Local, 4-Remote) CAT5 IP KVM

The KN4132 is an IP-based KVM s with multi-bus consoles, allowing simultaneous and independent access for a maximum of five users (1 local , 4 remote) to control 32 directly connected servers (cascadable to 512). The use of TCP/IP for its communications protocol, provides access via its IP address from anywhere on the LAN, WAN, or Internet. Remote operators can log in via a browser or make use of stand-alone Windows or Java applications. Java ensures multi-platform operability with any operating system supporting the Sun Java Runtime Environment (JRE). Using the client software allows for a direct connection to the KVM by-passing the browser. Either method (browser or client) and either application (Windows or Java) give remote operators the feeling of being directly connected to the KVM. Local console switching is accomplished either by entering hotkey combinations from the keyboard, or by using the same GUI interface as the remote users. The unit has two methods for monitoring attached servers, AutoScan permits the incremental monitoring of selectable servers at a configurable rate, and Panel Array Mode which can simultaneously display a view of up to 32 servers in a grid array (42 in cascaded installations). The switch features RJ-45 connectors allowing them to use CAT 5e cable to link to the computers. This space-saving innovation provides a full 32-port installation in a 1U system rack, and permits the servers to be placed as far away as 130 ft. Some of the unique aspects of the KN4132 are, Dual 10/100/1000 Mbps NICs, dial in PPP connection, Power Over the Net (via Java), Panel array, and Video quality / tolerance adjustments to optimize performance. With advanced security features, the KN4132 provides the fastest, most reliable, and cost effective way to remotely access and manage widely distributed multiple computer installations.

• Supports up to five bus sessions- 1 local and 4 IP - administrators can simultaneously access separate ports, plus an additional 28 users may log on to share the 4 IP connections.
• 32 port remote access KVM switch and monitor and control up to 16 directly connected computers, and up to 128 computers in a two-level cascade.
• Two 10/100/1000 Mbps NICs for redundant LAN.
• Full-screen graphical OSD on the local console.
• Full-screen or sizable and scalable remote desktop window and in full-screen mode the remote desktop display scales to and monitor display size.
• Remote authentication support: RADIUS, LDAP, LDAPS, and Active Directory.
• Magic Control Panel. The panel may be hidden away so it never interferes with your work area
• Video resolution: up to 1600 x 1200 @ 60Hz for both local and remote sessions
• Mouse Dyna-Sync for USB mice and local and remote mouse movement are the same and no need to constantly re-sync the two Cursors.

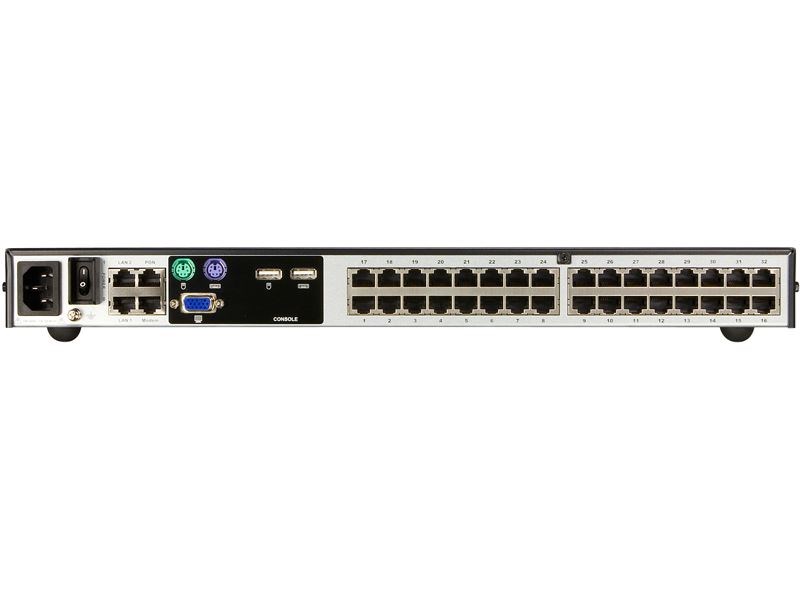

• RJ-45 connectors and CAT 5e cable for a neat, compact 1U installation.
• Web-based Windows and Java implementations allow access to the switch from an internet browser.
• Browser access can be disabled and Windows and Java GUI application programs provided for non-browser connectivity.
• Graphical OSD and toolbars for convenient, user-friendly operation.
• Panel Array Mode and view up to 16 ports at the same time and or up to 42 ports on cascaded installations.
• Software (On-screen) keyboard.
• PON supported via Java.
• PPP dial in support for Out of Band access .
• Video quality and tolerance can be adjusted to optimize video transfer speed.
• Windows-based Log Server.
• Supports all major server platforms and VT100 based serial devices.
• Supports multiplatform server environments: PS/2, USB, and Sun
• Supports 10Base-T, 100Base-T, 1000Base-T, Auto-Sense, TCP/IP, HTTP, DNS, DHCP, PPP, UDP, ARP, Ping.
• A total of 64 Multi-level user accounts with individual authentication: Super Administrator; Administrator; User; Viewer and with no restrictions on the number of each type
• Security features include user name / password protection and advanced encryption technologies and 1024 bit RSA; 56 bit DES; 256 bit AES; and 128 bit SSL.
• Flash upgradeable firmware
