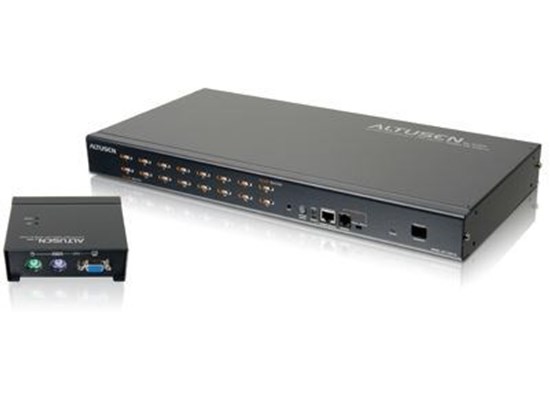

2 user shared access 16-port KVM (KH0116 & KA9250 Bundle)

ATEN's KH0116EXKIT offers two users (one local and one local remote) to shared access 16-port computers directly. The remote local user can be 500 feet away from the KVM box. It provides a convinient way for IT administrators to monitor/access the connected computers from their desks. Specially designed high density console connectors allow a 16 port KVM switch to use only a 1U high rack space, and control up to 512 computers through daisy chaining. Attach the option IP unit, CN5000, the user can control attached computers anywhere around the world. This switch offers many advanced features such as an intuitive OSD (On Screen Display), Hot Keys, excellent video resolutions, 2 level password security for users with different security clearance, flash ROM for firmware upgrade, remote console and more.

• Control 16 computers directly, or up to 512 computers through daisy chain, with only one keyboard, monitor and mouse
• High density 16 port KVM switch is rack mountable and only 1U high
• Neatly designed, high-quality, custom cable for the high density server rack
• Color-coded connectors for easy installation
• Dedicated chain ports allow daisy chaining up to 31 additional units and control up to 512 computers from a single console
• "Hot-pluggable feature allows adding or removing switches or computers without having to power down the switch
• "Keep-Alive feature assures all the keyboard and mouse connections work properly if the KVM switch loses power supply temporarily
• Auto-sensing of station positions for daisy chained installations - no need for manual DIP switch setting
• Front panel LED indicates station position
• Port names automatically reconfigured when station sequence is changed
• Two level password security - an administrator and up to four users, separate files for each, only authorized users viewing and controlling the computers
• Two level logout - manual and timed
• No software required
• Convenient computer selection via intuitive On Screen Display (OSD) menu or Hot Key combinations
• AutoScan offers easy monitoring of connected computers PS/2 keyboard & mouse emulation for smooth switching and simultaneously booting multiple computers
• Remote console allows control of KVM from up to 500 ft away
• Supports PS/2 compatible mice, Microsoft Intellimouse explorer, Logitech FirstMouse+
• Superior video quality - supports resolutions of up to 1920 x 1440
• 19" Rack mountable
• Firmware upgradeable through flash ROM
• 110-220V auto-sensing power supply
