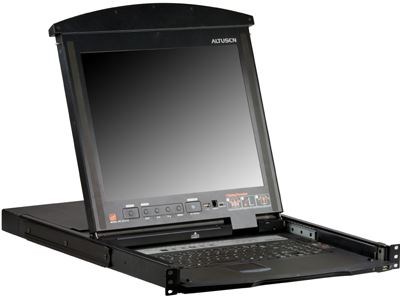

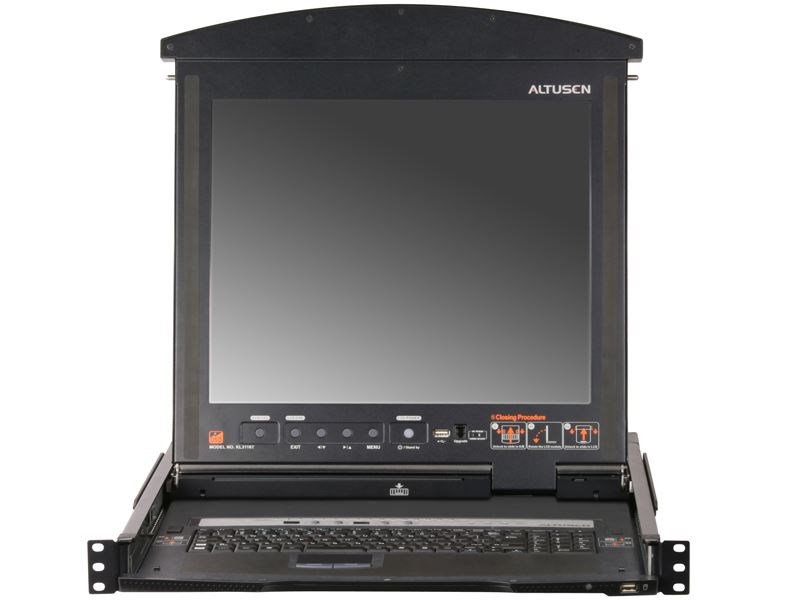

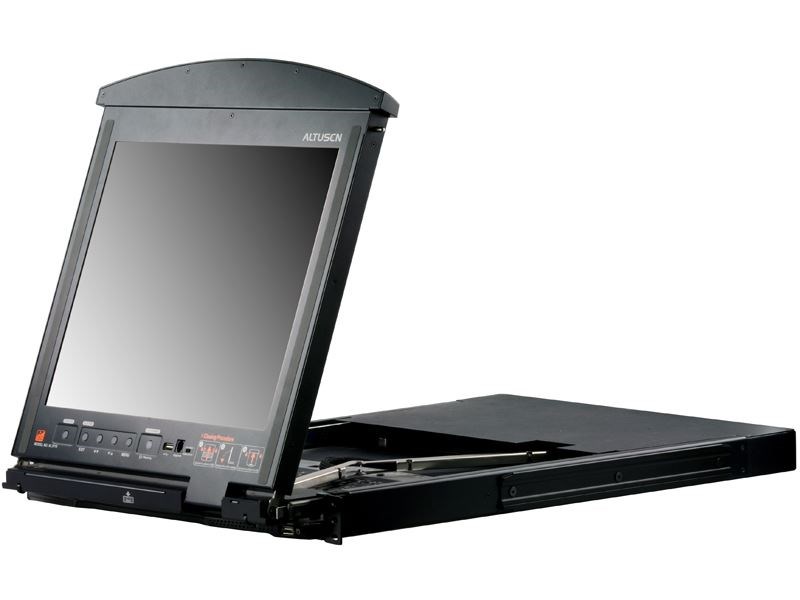

16 Port 17in Touch Screen Dual Rail LCD KVM Switch

The KL3116T Dual Rail Touch Screen KVMP™ Switch is an integrated LCD console and KVM (keyboard, video, and mouse) switch that offers secure access to 16 attached computers with a dual USB or PS/2 interface, and mounts in only 1U of rack space. It features an independently retractable 17" touch screen LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard “hides away” when not in use, while the thin profile LCD monitor reclines flush against the rack to enable continuous monitoring of computers. The KL3116T is ideal for industrial environments such as factory production lines, laboratories, and sever rooms, or anywhere else an LCD KVM switch is required. Anyone working on a production line while wearing gloves knows the difficulty of trying to control on-screen testing programs with the use of a mouse. The KL3116T touch screen is the easiest and most convenient way to solve problems with user interactive production line testing programs. As many as 31 additional switches can be daisy-chained together, so that up to 512 computers can be controlled from a single keyboard, touch screen, and mouse console. You can also conveniently share USB peripherals attached to the KL3116T with computers on the same level. The KL3116T is the first Dual Rail Touch Screen KVMP™ Switch of its kind that requires no additional software to operate; simply connect the KL3116T to your installation and begin using it immediately.

• Extra console port and manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard and mouse)
• Supports External USB mouse
• Convenient computer selection via mouse-driven, intuitive OSD menus and hotkeys
• OSD tree structure makes finding and managing computers easy
• Dual Rail and LCD monitor slides independently of the keyboard/touchpad
• Hot pluggable and add or remove computers without powering down the switch
• OSD port list automatically expands when new stations are added
• OSD screen automatically adjusts to resolution changes
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast support and commands from the keyboard can be broadcast to all available computers on the installation
• Two-level password security and Administrator and up for four Users; only authorized users view and control the computers; separate profiles for each
• Administrator/user password authorization for enhanced security protection; administrator access rights synchronized between master and slave stations
• LCD power button helps save energy and prolong display’s life
• DDC emulation and video set tings of each computer are automatically adjusted for optimal output to the monitor
• Standard 105-key keyboard
• Keyboard status restored when switching computers
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Superior video quality and supports resolutions up to 1280 x 1024 @ 75 Hz
• Two types of logout: manual and timed
• Firmware upgradable
