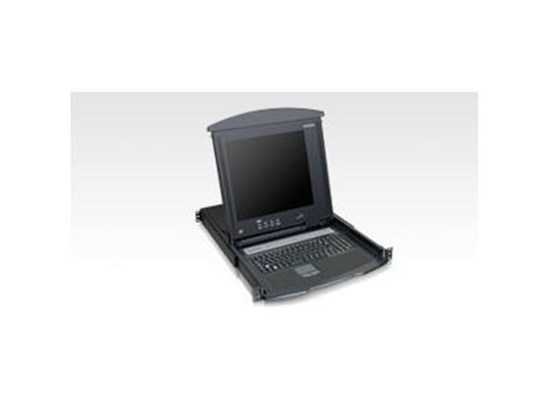

ATEN's new 16-port Hideaway™, KL1116, control unit allows access to multiple computers from a single KVM (keyboard, monitor, and mouse), console. A single KL1116 can control up to 16 computers, and as many as 31 additional units ( KH0116) can be daisy chained so a maximum of 512 computers can all be controlled from a single KL1116. The KL1116 offers a space-saving, streamlined approach to KVM technology by integrating a keyboard, LCD monitor, and touchpad in a 1U Hideaway™ housing. The LCD module and keyboard module slide independently so the keyboard can be out of the way while the display stands vertically flat against the rack for convenient viewing. Access to any computers in the installation is easily accomplished by a powerful, mouse driven, OSD (On Screen Display) menu system, or by Hotkey combinations from the keyboard. A convenient Auto Scan feature permits automatic sequential scanning of active computers. An additional console port on the rear of the unit allows remote, second user access either across the network / internet (CN5000) or from a removed location ( CE250 or CE252). There is no better way to save time and money than with a KL1116 installation. By using the KL1116 with its Hideaway™ console to manage your installation, you: (1) eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer; (2) save all the space those extra components would take up; (3) save the space that a keyboard, monitor, and mouse would take with a standard KVM switch; (4) save on energy costs; and (5) eliminate the inconvenience and wasted effort involved in constantly moving from one computer to another.
- A single LCD console drawer with built-in KVM switch controls up to 16 computers directly
- A 16 port KVM switch, keyboard, 17" LCD display, and touchpad all combined into a neatly arranged, 1U high rack-mountable drawer
- Dual rail design allows LCD monitor and keyboard/touchpad modules to be operated independently.
- Dedicated daisy chain port to link up to 31 more High Density KVM Switches (model KH0116) and allows you to control up to 512 computers from a single console
- Plug-n-Play; no software required
- Convenient computer selection via intuitive mouse-driven On Screen Display (OSD) menus or Hot Key combinations
- Two Consoles Design - remote access ready
- AutoScan feature for monitoring selected computers
- Hot pluggable; add or remove computers without having to power down the switch
- Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting
- Port names automatically reconfigured when station sequence is changed
- Two level password security: up to four authorized users and an administrator view and control the computers, with separate profiles for each
- Two level logout - manual and timed
- PS/2 keyboard and mouse emulation allows computers to boot even when they are not selected
- 17"RGB analog LCD display supporting high XGA resolutions of up to 1280 x 1024 with 250cd/m(sq) brightness
- Firmware upgradeable through flash ROM
