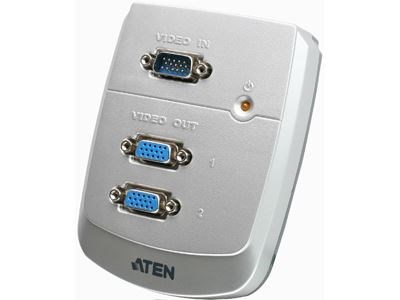

2 Port Video Splitter, 190 Mhz video bandwidth

The VS82 video splitter is not a "Y" connection in a box, but rather an active device performing two functions: (1) it reproduces a video signal from a single source into multiple outputs, and (2) it boosts the signal so it can be transmitted over longer distances without signal degradation. Comparing the input signal to the out put signal with advanced video signal test equipment, ATEN's VS82 exhibits excellent performance characteristics on DC offset and white level tests. These results provide measurable proof that the VS82 represents the truest color reproduction possible from original signal input to multi signal outputs. ATEN's Video Signal Enhancement (VSE), technology automatically compensates the output video signal making allowances for the distance between the VS82's output and the monitor's input, thereby deliveringptimal signals for use by your monitors

• One video input to 2 video outputs
• Support up to 190MHz bandwidth @ -3dB
• Long distance transmission - up to 210 ft.(65 m)
• High video resolution - up to 1600x1200
• DDC, DDC2, DDC2B compatible
• Compact design lays flat on the desktop
• Support VGA, XGA, SVGA, UXGA and multisync monitors
